| Contents | Heater Matrix - Renault | Contents |
| Application | Htr No. | Height | Width | Depth | Pipe dia | Image |

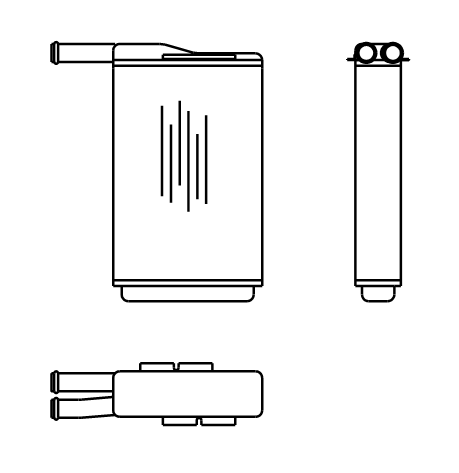

| 11 1982-89 | 20285 | 261 | 157 | 48 | 18mm |  |

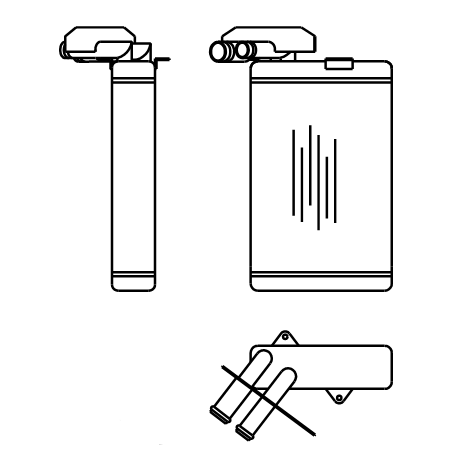

| 19 1988-96 | 20572 | 255 | 157 | 48 | 18mm & 22mm |  |

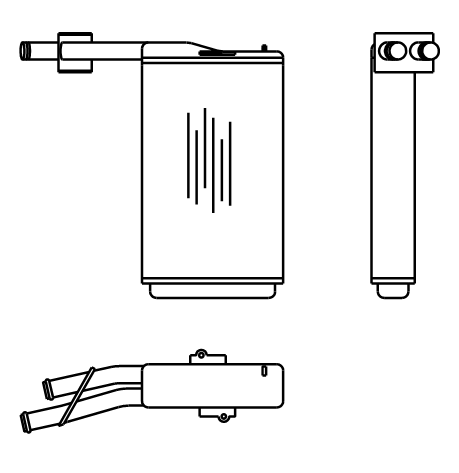

| 21 1986-93 | 20213 | 271 | 157 | 48 | 3/4" |  |
| 5 Super 1985-91 | 20285 | 261 | 157 | 48 | 18mm | |
| 9 1982-89 | 20285 | 261 | 157 | 48 | 18mm | |
| Alliance 1991- | 20285 | 261 | 157 | 48 | 18mm | |
| Clio 1990- | 20572 | 255 | 157 | 48 | 18mm & 22mm | |
| Encore 1981- | 20285 | 261 | 157 | 48 | 18mm | |
| Espace 1985-91 | 20285 | 261 | 157 | 48 | 18mm | |
| Megane 1996- | 20572 | 255 | 157 | 48 | 18mm & 22mm | |
| Rapid 1985- | 20285 | 261 | 157 | 48 | 18mm | |
