| Application |
Htr No. |
Height |
Width |
Depth |
Pipe dia |
Image |

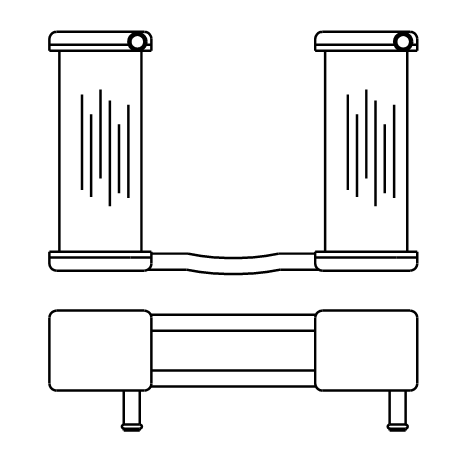

| Boxer | 20277 | 206 | 368 | 76 | 5/8" |  |
| Bus Underseat | 20111 | 225 | 194 | 94 | 3/4" |  |

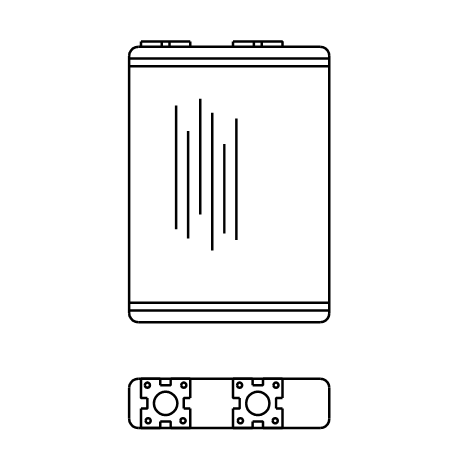

| Convoy | 20539 | 212 | 154 | 38 | flange |  |

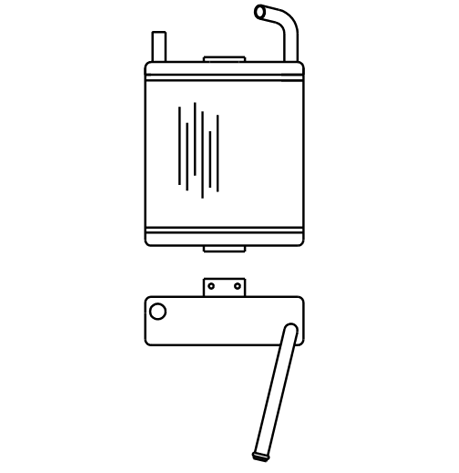

| Cydesdale | 20282 | 273 | 194 | 59 | 5/8" |  |
| DAF 400 (Peugeot engine 1992-) | 20465 | 305 | 157 | 48 | 5/8" |  |
| DAF 45 1991- | 20466 | 332 | 157 | 48 | 18mm |  |

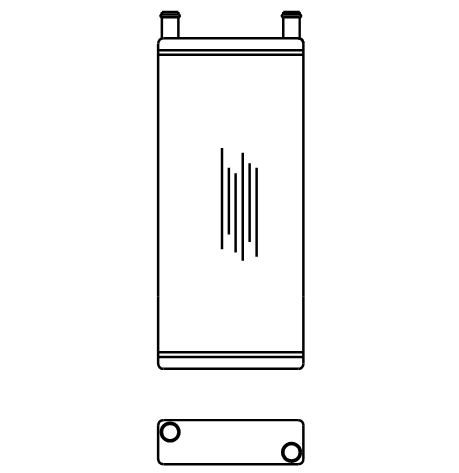

| DAF Demister | 20487 | 447 | 194 | 59 | 22mm |  |
| Dart | 20329 | 370 | 140 | 58 | 22mm |  |
| Dart | 20534 | 450 | 194 | 59 | 3/4" |  |

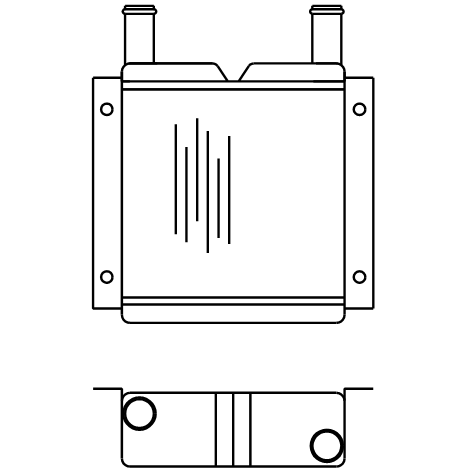

| Demister | 20418 | 225 | 194 | 64 | 1" |  |

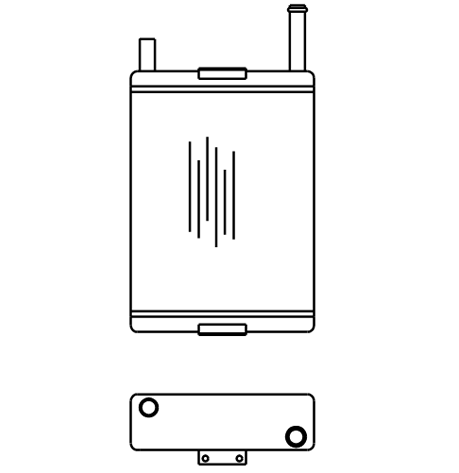

| EA Van | 20179 | 276 | 194 | 59 | 5/8" |  |

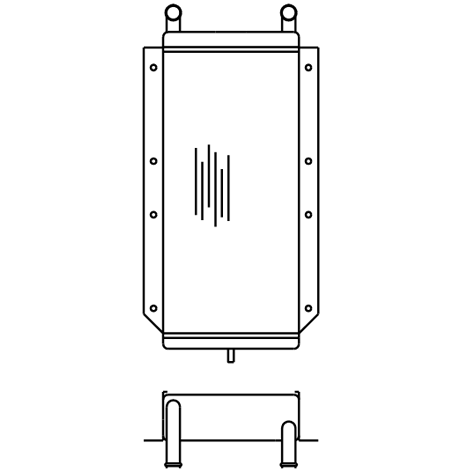

| Lynx | 20237 | 450 | 194 | 59 | 3/4" |  |
| Lynx | 20537 | 455 | 194 | 59 | 3/4" |  |
| Marathon | 20243 | 198 | 403 | 107 | 5/8" |  |
| National bus | 20109 | 457 | 194 | 59 | 3/4" |  |

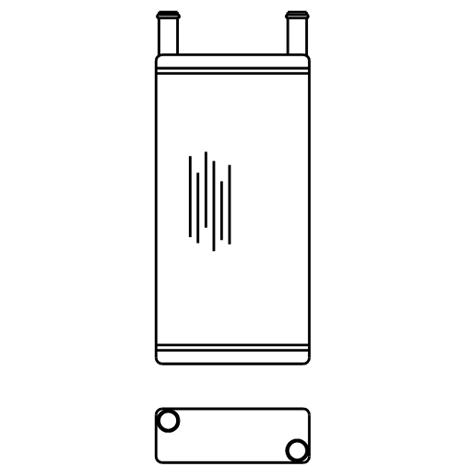

| Olympian | 20393 | 363 | 180 | 62 | 22mm |  |

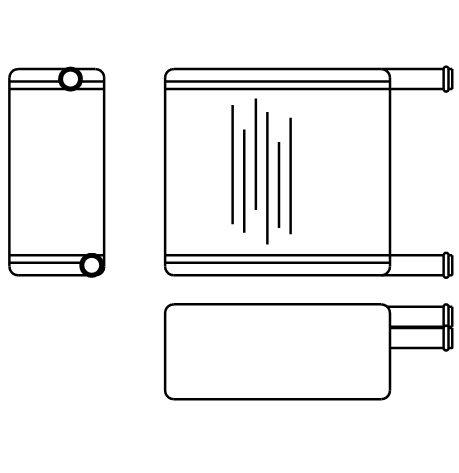

| Panther | 20113 | 165 | 185 | 80 | 3/4" |  |

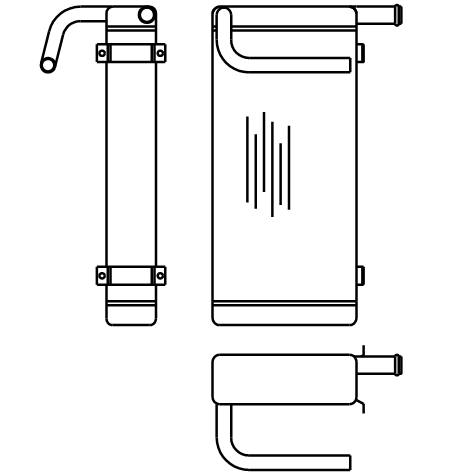

| Road Runner Mk1 1985-88 | 20206 | 354 | 157 | 48 | 3/4" & 5/8" |  |

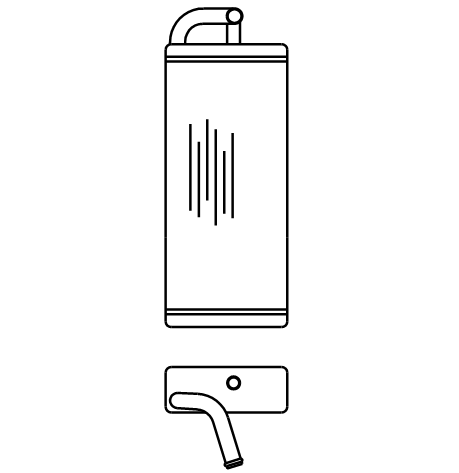

| Road Train | 20230 | 354 | 152 | 64 | 3/4" & 5/8" |  |

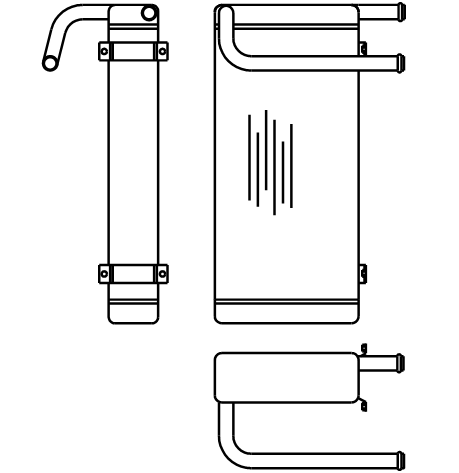

| RoadRunner Mk2 1988- | 20374 | 354 | 157 | 48 | 5/8" |  |

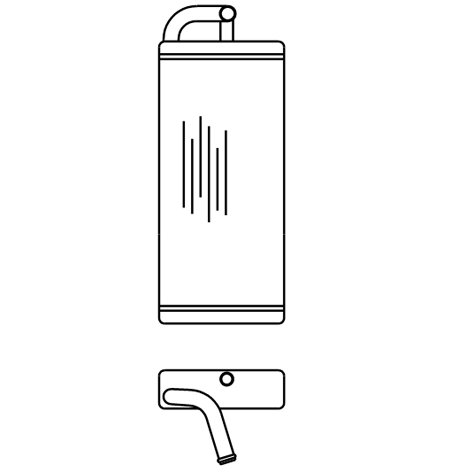

| RoadTrain | 20457 | 354 | 157 | 48 | 3/4" & 5/8" |  |

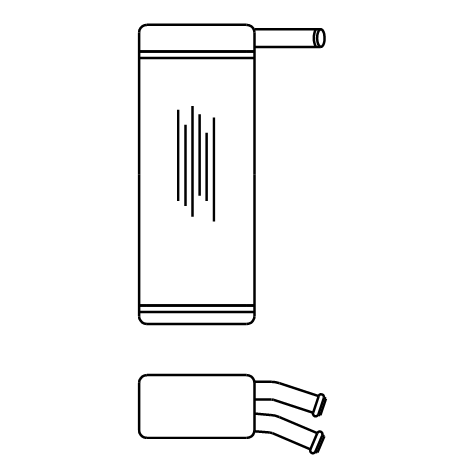

| Sherpa 1971-80 | 20148 | 272 | 105 | 57 | 5/8" |  |
| Sherpa 200 1980-87 | 20254 | 267 | 140 | 48 | 5/8" |  |
| Sherpa Mk2 1987-89 | 20187 | 298 | 152 | 64 | 5/8" |  |
| Sherpa Mk2 1987-89 | 20283 | 298 | 152 | 64 | 5/8" |  |
| Swift | 20534 | 450 | 194 | 59 | 3/4" | |
| Terrier | 20277 | 206 | 368 | 76 | 5/8" | |

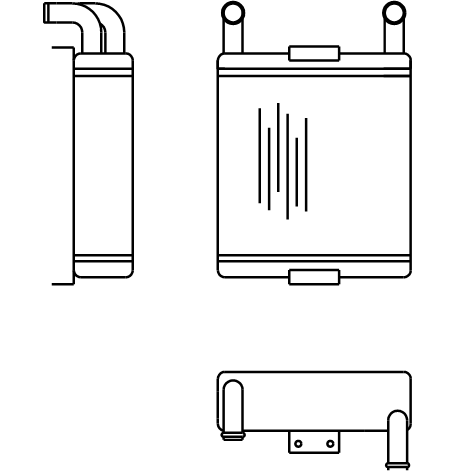

| Tiger | 20267 | 225 | 194 | 55 | 3/4" |  |

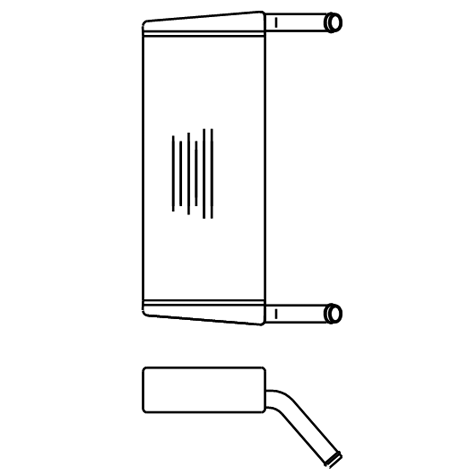

| Tiger | 20549 | 405 | 158 | 58 | 22mm |  |

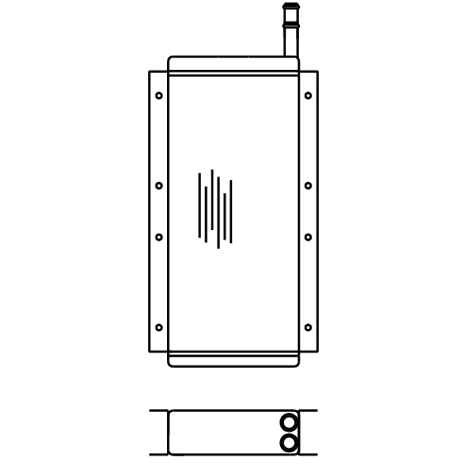

| Tiger | 20724 | 457 | 193 | 65 | 15mm |  |
